HZD型自動提升料斗混合機（HZD SERIES BIN BLENDER）：

應用范圍

料斗混合機是國際制藥界使用最普遍的固體粉粒狀藥物的混合設備。它混合均勻度高，料斗可移動，極大地方便裝料、混合、出料及清洗;能與前后工藝設備有機地銜接成流水線，有效地克服了由于反復轉料造成的交叉污染與粉塵;該機能配不同規格的料斗，以滿足大批量、多品種的混合要求。該機是藥廠總混、批混的理想設備，同時在化工、食品、輕工等行業亦有廣泛的用途。

Applications

HZD Series Container Blender is the most widely used mixing equipment for solid powder in internationalpharmaceutical industry having high uniformity and large loading capacity. The bin is very convenient formaterial loading, mixing discharging and cleaning. The bin is easily integrated with technical equipmentsback and forth and forms a stream line which effectively prevents cross contamination and powder dustcaused by repeated feed transfer.

HZD型自動提升料斗混合機產品特點:

1、該機結構合理，性能更穩定可靠;保養、維護方便;

2、該機使用了完全符合藥廠工藝要求的程序操作系統;工藝參數設定系統，安全保護停機系統;自動精確對位系統;操作及自動記錄打印系統，實現了全自動生產,操作十分簡便。

3、獨創的比例位置傳感器，使設備安全可靠，不會因誤操作至設備事故。

4、該機配有精制的完全符合GMP要求料斗，出料不殘留，清洗方便。

Features：

1、The replaceable bin enables the machine to meet the requirements of small-batch production inmultiple varieties.

2、This machine automatically performs raising, clamping mixing and lowering in fully closed state.The production process has been greatly optimized fully complying with GMP requirements.

3、This machine is PLC controlled and is operated by touch screen with adjustable working parameter.It also has many features such as automatic positioning printing and fault alarming.

4、Original position sensors, the equipment is safe and reliable, not due to improper operation to the device.

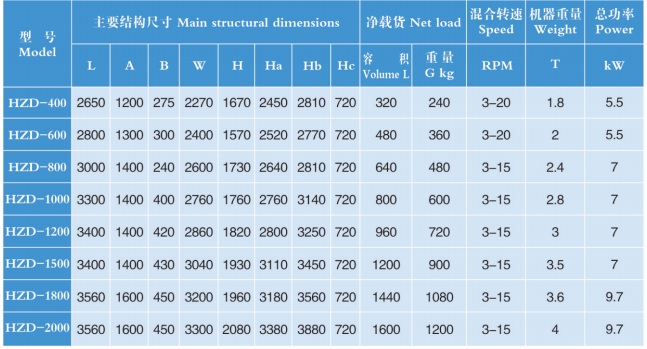

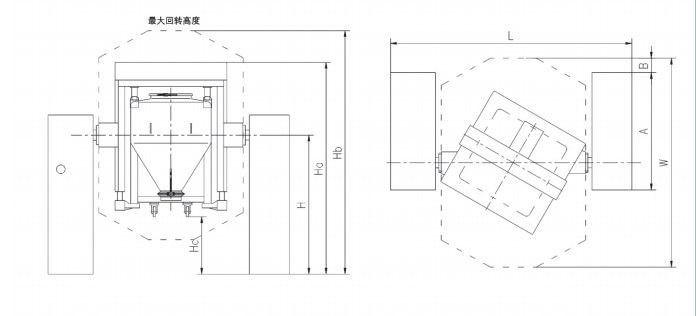

HZD型自動提升料斗混合機技術參數（Technical paramenters）：
